● Main power voltage: 24-60VDC. Rated voltage: 48VDC

● Rated power: 750W. Rated torque: 2.39N.m. Overload: 300%

● 17 bit incremental magnetic encoder

● CANopen: CiA301. CiA402. Profile Position/Profile velocity/Profile Torque/Homing

● Dip switch for node ID, baud rate and terminating resistor settings

● RS-232 serial interface for easy tuning with Motion Studio

● With brake

Leadshine iSV2 series includes 60mm & 80mm frame size servomotors which are integrated with 17-bit encoders and servo drives.

Its power ranges from 200 to 750W with peak torque to 7.2 Nm. At very compact size an iSV2 integrated servo motor can save mounting space, eliminate encoder & power cable connections, reduce interference, and reduce system cost.

Technical Data

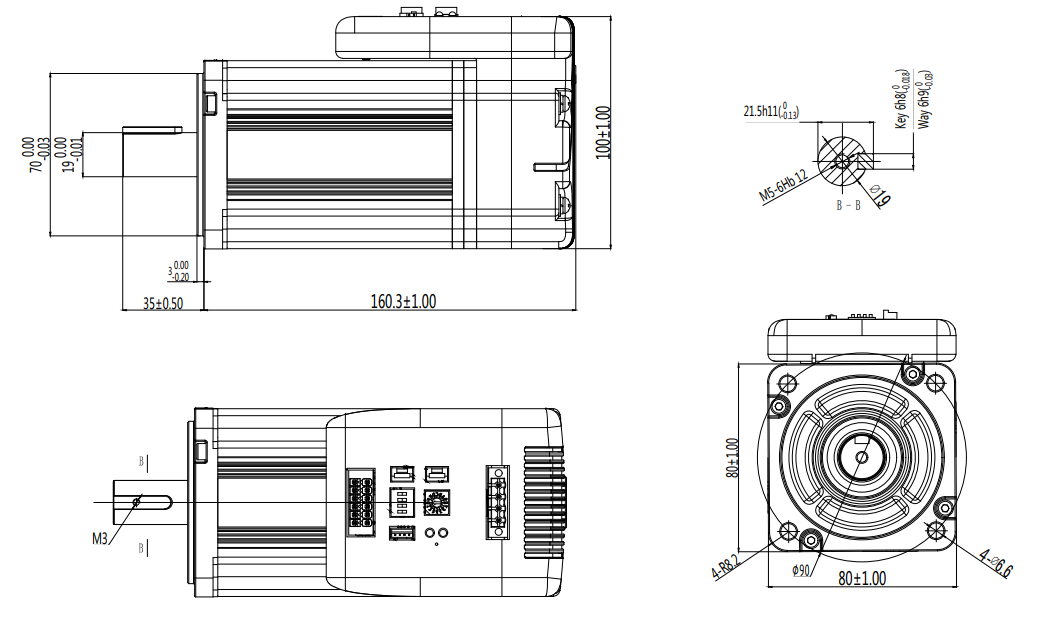

Frame size (mm)80
Rated power (W)750
Rated voltage (VDC)48
Rated torque (Nm)2.4
Rated current (Arms)19
Rated speed (r/min)3000
Peak torque (Nm)7.2
Maximum current (Arms)57
Maximum speed (r/min)4000
Encoder17   bit incremental magnetic encoder
Weight (kg)3.19
Protection classIP20



Speed-Torque Curve
