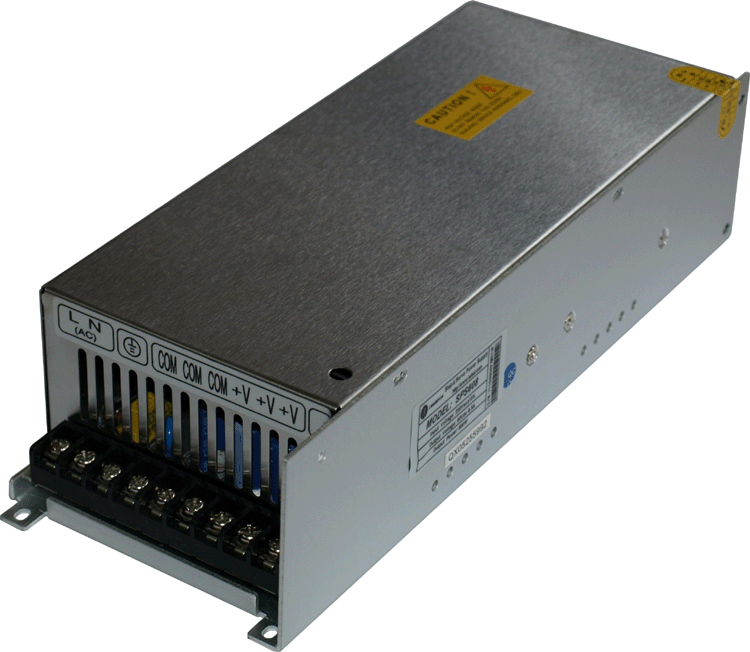

RPS4810

Product Category
RPS4810
  • Specifically designed to power stepping / servo drives

  • Internal EMI Filter

  • 85-132 or 176 -265 VAC Input voltage

  • 48 VDC output voltage

  • 10.4A continuous output current.

  • 100% full load burn-in test

  • Output short circuit, over-current and over-voltage protection

The RPS series switching mode power supplies are specifically designed to power inductive loads generated in stepper and servo systems. The normal regulated switching power supplies popular on the market are usually working with bad reliability and low efficiency when used in stepper and servo driving, this is because that the conventional switching power supplies are designed for the constant and unvarying loads. Whereas, when the stepper or servo system running, the driving current varies extremely fast, which is belonged to inductive load, herein the drives and power supplies would be damaged easily if used normal power supplies. The RPS series supplies are capable of delivering current to drives without affecting the reliability due to their bulky capacitors. By selecting appropriate model, one power supply can supply 1-4 drives, saving the average cost of per shaft.

Technical Data
MODELRPS2410RPS369RPS488RPS608
OUTPUTDC VOLTAGE24V36V48V60V
RATED CURRENT10A9.7A7.3A8.5A
PEAK CURRENT12A12A8.5A10.5A
RATED POWER240W350W350W400W
PEAK POWER300W400W400W500W
LINE REGULATION± 0.5%
ADJ. RANGE± 10%
RISE TIME50ms/230VAC at full load
HOLD TIME20ms/230VAC at full load
INPUTVOLTAGE RANGE176-265VAC or 85-132VAC, selected by switch
FREQUENCY RANGE47-63Hz
INRUSH CURRENT40A/30VAC, Cold Start
LEAKAGE CURRENT<0.5mA/230VAC
WITHSTAND VOLTAGEVin~Vout: 1500VAC/min, Vin~FG: 1500VAC/min, Vout~FG: 500VAC/min
Dimension(mm)199*110*50214.5*113.6*49.5261*102.4*65
Weight800.4g(28.23oz)883.5g(31.16oz)1127g(39.75oz)

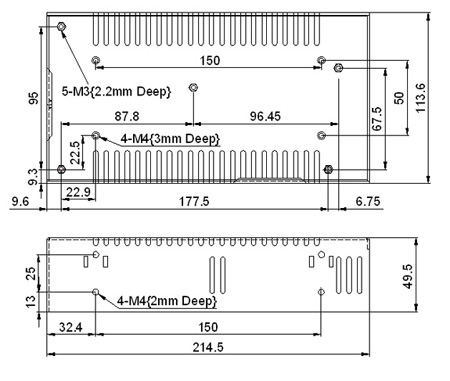

Mechanical
