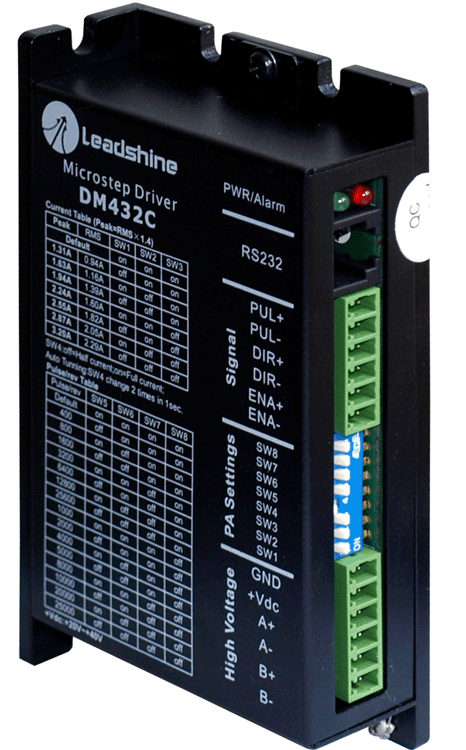

DM432C

Product Category
DM432C
  • Extra-low motor noise offers excellent quietness

  • Anti-Resonance, provides optimum torque and nulls mid-range instability

  • Self-test and Auto-configuration technology, offers optimum responses with different motors

  • Microstep resolutions programmable, from full-step to 102,400 steps/rev

  • Supply voltage up to +40 VDC

  • Output current programmable, from 0.5A to 3.2A

  • Pulse input frequency up to 200 KHz

  • Automatic idle-current reduction

  • Supports PUL/DIR and CW/CCW modes


The DM432C is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The Self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives in the markets. Its unique features make the DM432C an ideal solution for applications that require low-speed smoothness.

Technical Data
ParametersDM432C
MinTypicalMaxUnit
Output current0.1-3.2   (2.3 RMS)A
Supply voltage20-40VDC
Logic signal current71016mA
Pulse input frequency0-200kHz
Isolation resistance500

Mohm


Mechanical
