Leadshine AC Servo Applied in CNC Wooden Sizing Machine

Leadshine AC Servo Applied in CNC Wooden sizing machine

Leadshine AC Servo EL7 series is widely used for sizing, drilling and other process in wooden sizing machine with high-quality, high cost-effective feature.

Abstract: Leadshine AC Servo EL7 series is widely used for sizing, drilling and other process in wooden sizing machine with high-quality, high cost-effective feature.

Keyword  Leadshine servo ; Cost-effective



1.Equipment Introduction



CNC wooden sizing machine is widely used for wooden processing in furniture market , it will be more effective if the machine is integrated with automatic typesetting technology , automatic cutting, special-shaped cutting, vertical drilling technology etc , Leadshine AC servo solution is widely used in CNC wooden sizing machine to make the processing more efficient, more flexible .

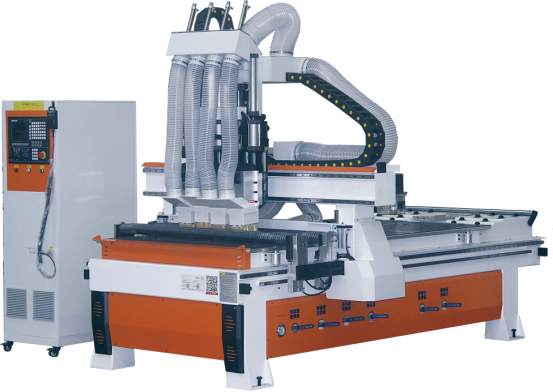

CNC wooden sizing machine



2. Leadshine Solution

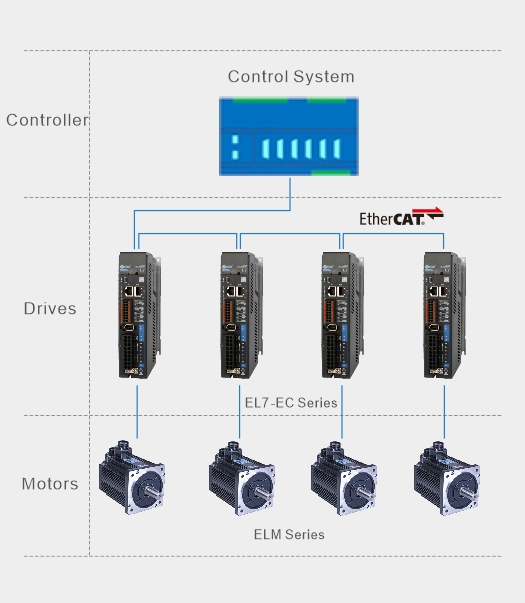

2.1 System Configuration

Leadshine Solution



2.2 Product configuration

High-accuracy solution : AC Servo with EtherCAT communication



Product

Model

Types of CNC wooden sizing machine

Multiple operation

Multiple operation with

rows of drills

Single operation with disk tool storage

Single operation with disk tool storage with rows of drills

Servo drive and motors 1.5kw

( EtherCAT)

EL7-EC1500Z

ELM1500LH130F-H

ELM1500LH130E-H (brake)

Servo drive and motors 0.75kw

( EtherCAT)

EL7-EC750S



ELM0750LH80F-SS

ELM0750LH80E-SS (brake)



Cost-effective solution : AC Servo with Pul+Dir



Product

Model

Types of CNC wooden sizing machine

Multiple operation

Multiple operation with

rows of drills

Single operation with disk tool storage

Single operation with disk tool storage with rows of drills

Servo drive and motors 1.5kw

( EtherCAT)

EL7-D1500Z

ELM1500DH130F-H

ELM1500DH130E-H (brake)

Servo drive and motors 0.75kw

( EtherCAT)

EL7-D750Z



ELM0750DH80F-SS

ELM0750DH80E-SS (brake)





2.3 Solution Advantage:

Warning of Gantry control: warning of position deviation for dual Y axes with real-time  communication

High performance: up to 2.5KHz for velocity-bandwidth , vibration suppression

Network communication: Servo drives with EtherCAT communication



2.4  Added value for machine maker :

Easy to tune :  setting file of servo drive can be duplicated easily

Easy for Sizing/drilling :  high-response servo make the circle movement faster and easier

Highly reliable : no disturbance with EtherCAT communication , make position more accurate



3. Application Scenario

Square Cutting

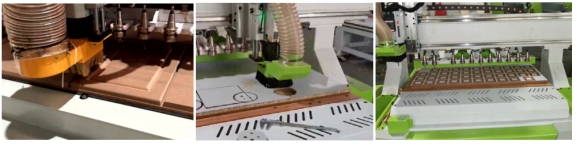

          Square Cutting                Circle Cutting                 3-dimensions Angle Cutting
