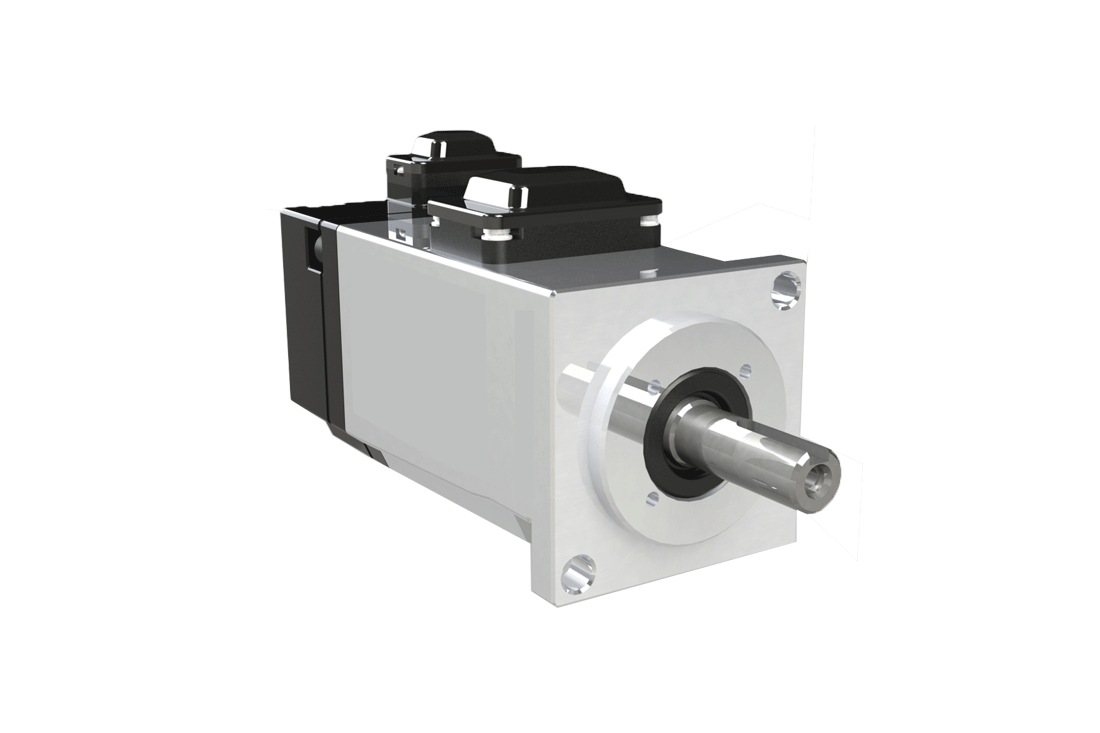

ELM2S-0100LH40F-DC
Product Category

ELM2S-0100LH40F-DC

● Rated voltage 220VAC, rated power 100W

● Frame 40mm, rated torque 0.32N·m, rated speed 3000r/min

● 23-bit optical encoder

● Non brake, direct connect connector

● Lower noise and lower temperature rise

● Strong overload capacity

● IP67


List Price: $ 199.00
Online Special Price: $ 199.00

The AC servo motors are designed by LeadShine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 7500W, frame size range from 40mm to 180mm. 17-bit/23-bit absolute encoders are optional. Multiple motor connector types are available.


Technical Data
ModelELM2S-0100LH40F-DC
Frame Size (mm)40
Rated Power (W)100
Rated Voltage (V)220
Rated Torque (N·m)0.32
Peak Torque (N·m)0.96
Rated Current (Arms)0.85
Peak Current (Arms)2.97
Rated Speed (r/min)3000
Peak Speed (r/min)6000
Inertia (kg·m²·10-4)0.062
Mass (kg)0.46

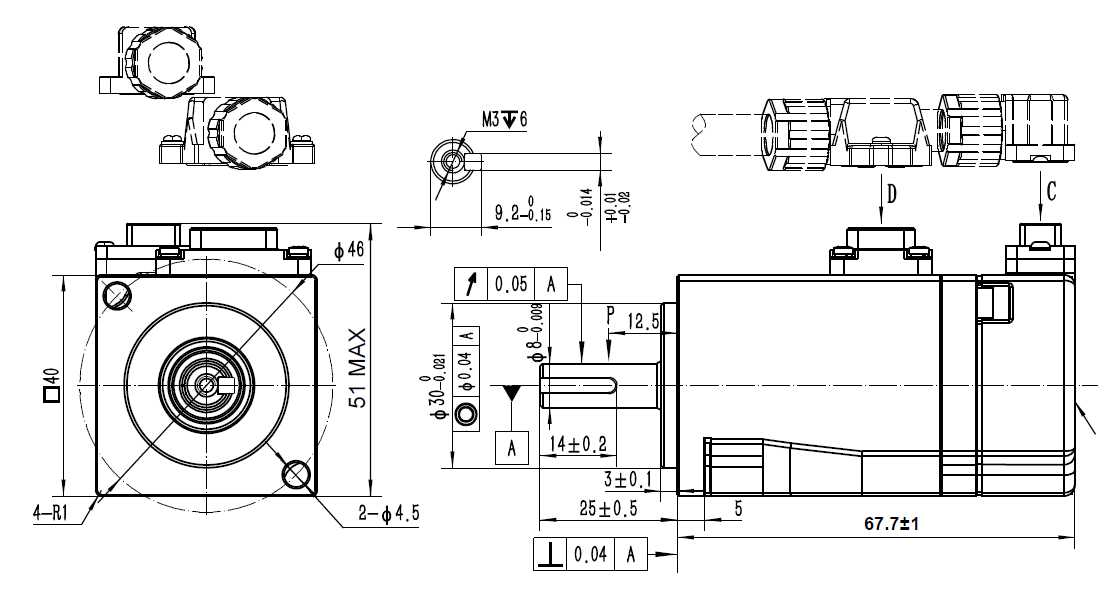

Mechanical


Speed-Torque Curve
