Leadshine Solution for Six-side CNC Drilling Machine

Leadshine Solution for Six-side CNC Drilling Machine

Leadshine EL7 Series AC Servo provide a high-efficiency solution for six-side CNC drilling machine for drilling, slotting, chamfering, etc .

Abstract:Leadshine EL7 Series AC Servo provide a high-efficiency solution for six-side NC drilling machine for drilling, slotting, chamfering, etc .

Keyword: Leadshine Servo , Six-side NC Drilling



1.Equipment Introduction




As a typical wooden processing equipment, six-side CNC drilling machine is widely used to complete the processing of six-side wooden material at one time automatically, to improve the whole processing faster and more accurately, and to reduce the labor cost for the whole wooden processing line , leadshine EL7 Series AC Servo provide a high-efficiency solution for six-side NC drilling machine for drilling, slotting, chamfering, etc .

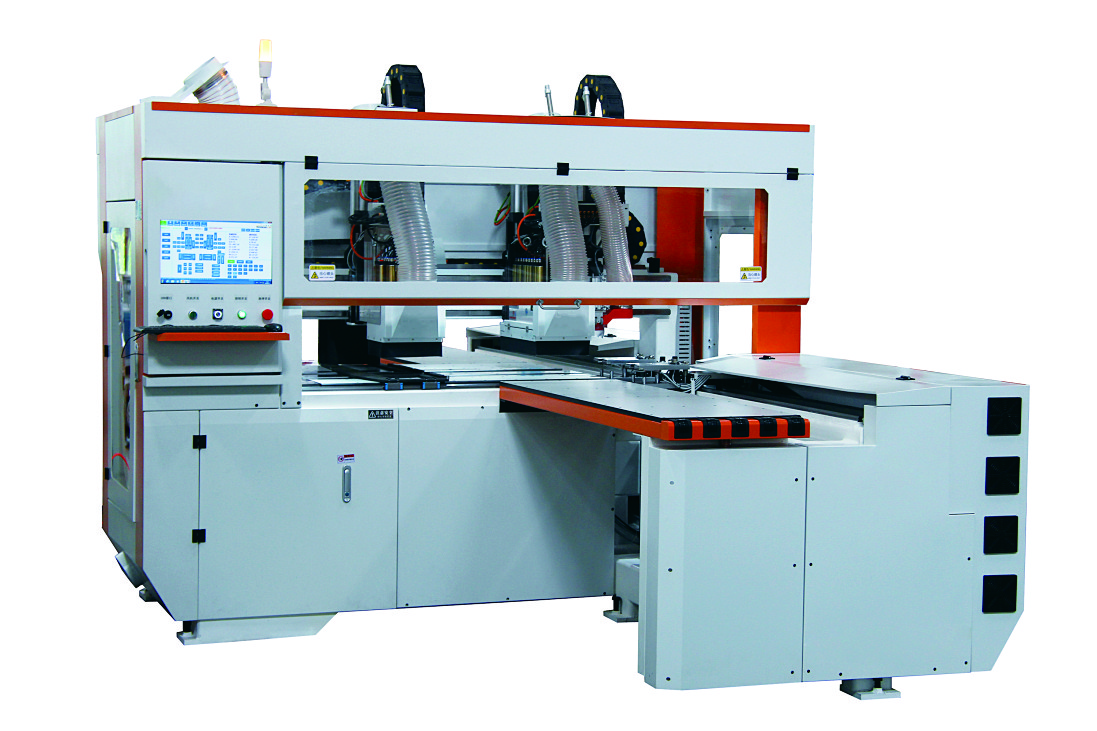

CNC drilling machine

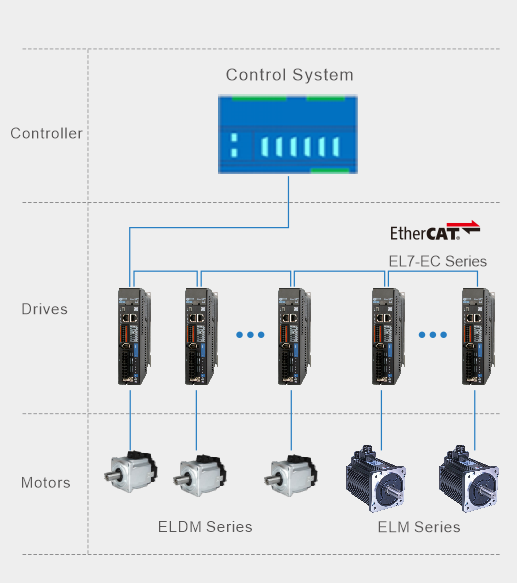

2. System Configuration

System Configuration



3.  Product configuration

High accuracy solution:

Product

Model

Types   of Six-side drilling machine

Single   drilling pack

Double   drilling pack

Servo drive and motors 1.5kw (EtherCAT)

EL7-EC1500Z

ELM1500LH130F-H

ELM1500LH130E-H(brake)

Servo drive and motors 0.75kw (EtherCAT)

EL7-EC750S

ELM0750LH80F-SS

ELM0750LH80E-SS (brake)



Cost-effective solution

Product

Model

Types   of Six-side drilling machine

Single   drilling pack

Double   drilling pack

Servo drive and motors 1.5kw (EtherCAT)

EL7-EC1500Z

ELM1500DH130F-H

ELM1500DH130E-H (brake)

Servo drive and motors 0.75kw (EtherCAT)

EL7-EC750S

ELM1S-0750FH80F-SS

ELM1S-0750FH80E-SS (brake)




4. Solution Advantage:


High performance: up to 2.5KHz for velocity-bandwidth , vibration suppression

Network communication: EtherCAT for high speed communication

Abundant “alarm list”: easier for after-sales service

Strong adaptability: perfectly matched with drilling control system from LNC/Syntec



Added value for machine maker :

High-efficiency high response servo make drilling and slotting faster and easier ;

Simpler operationposition memory after power off, no need to do homing

High reliability: successfully used for large number of customers

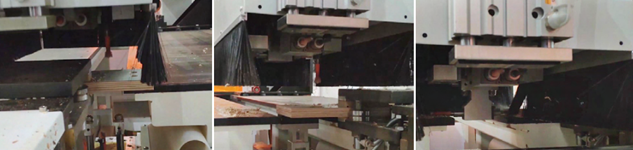

5. Application Scenario

Vertical drilling

   Vertical drilling     Gripper automatic avoidance drilling      Horizontal drilling

Solution details
Product Title Product Model Product Description
EL7-EC1500Z Servo Drive EL7-EC1500Z EtherCAT communication, rated power 1500W, rated voltage 220VAC 1ph/3ph
EL7-EC750S Servo Drive EL7-EC750S EtherCAT communication, rated power 750W, rated voltage 220VAC 1ph
