The input signal supports 5~24V compatible
Voltage input range: 20~50 VDC
Maximum current: 4.2A, resolution: 0.1A
3 input signals: pulse, direction, enable
2 output signals: alarm, brake
8 levels of current adjustable, 16 levels of subdivision adjustable
Extended function DIP supports pulse mode, gain mode, etc

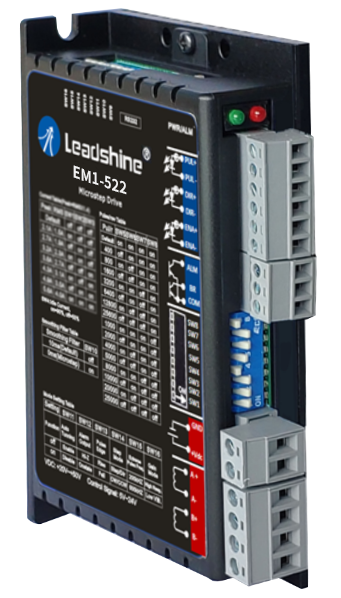

EM1 series is a new generation of general-purpose pulsed two-phase stepper drives from Leadshine . The driver adopts the latest open-loop stepper drive control algorithm with more than 20 years of persistent pursuit, Leadshine has a more complete supply chain system and a more sound production guarantee.
The new EM1 digital series is based on the classic DM series, changed to a domestic device, not only the function has been optimized, the performance has been improved, and the cost has been slightly reduced. The full series have tuning ports, a second set of functional DIPs, and a metal heat sink to ensure maximum functionality and performance while achieving the ultimate in reliability.
