● Rated voltage 220VAC, rated power 750W

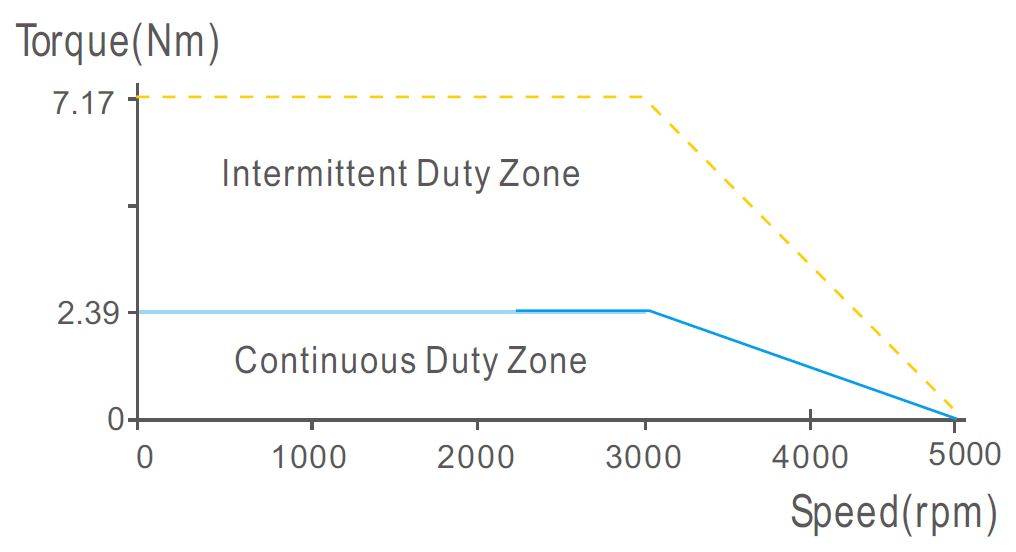

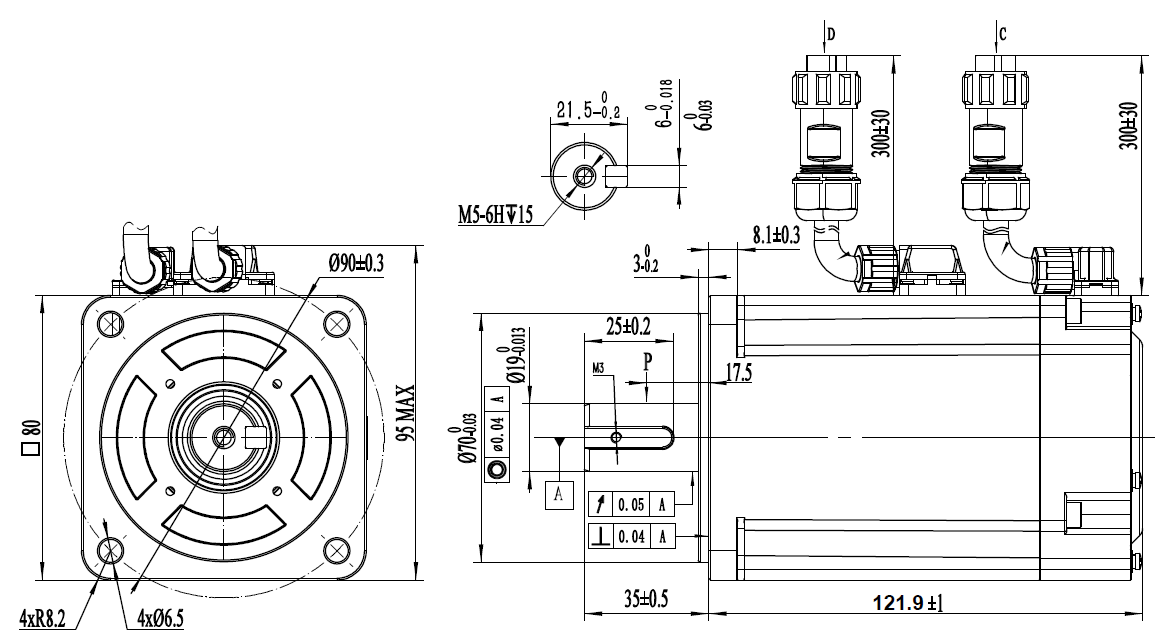

● Frame 80mm, rated torque 2.39N·m, rated speed 3000r/min
● 17-bit magnetic encoder
● With brake, aviation connector
● Strong overload capacity
● IP65

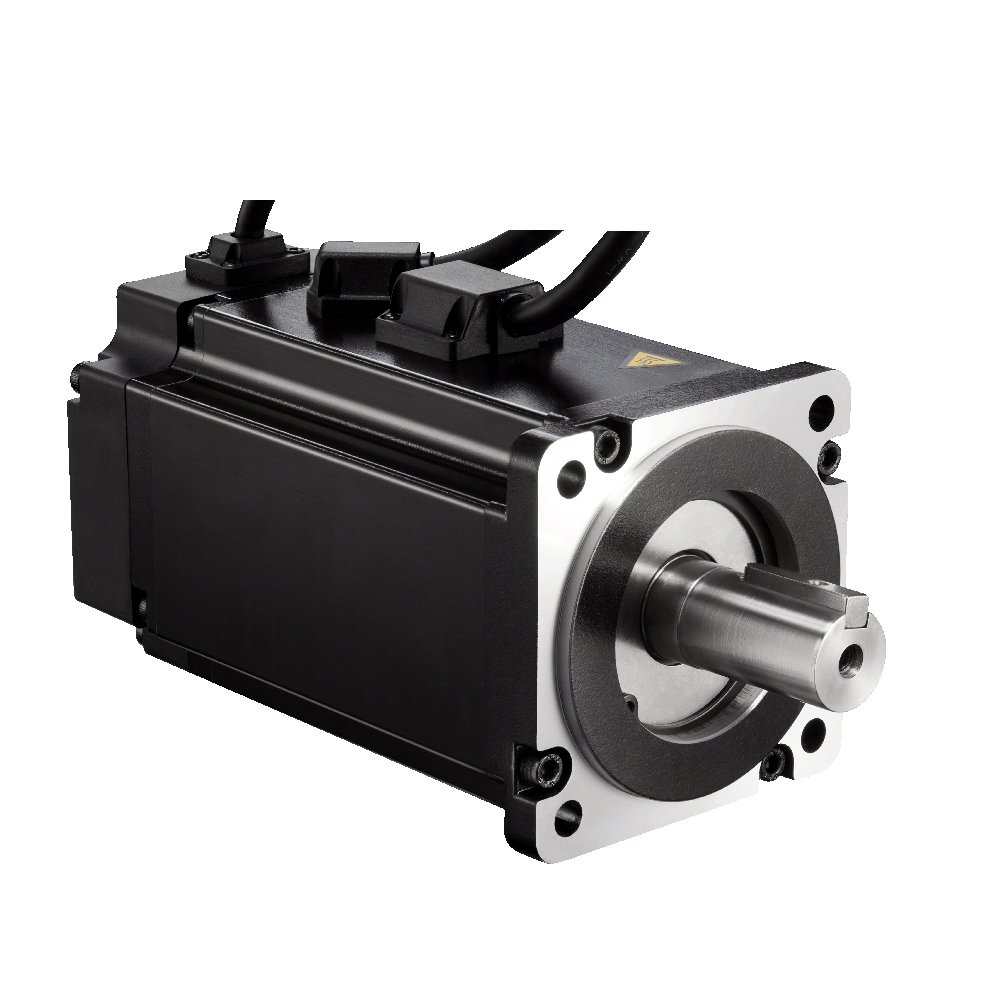

The AC servo motors are designed by LeadShine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 7500W, frame size range from 40mm to 180mm. 17-bit/23-bit absolute encoders are optional. Multiple motor connector types are available.
