  • Specially designed to be integrated into custom OEM motion control systems

  • Step & direction control

  • Operating voltage of 20-60VDC

  • Maximum output current of 6.0Amp

  • Capable of powering 2 or 4 phase NEMA 17, 23, 24 stepper motors

  • 8 output current settings: 1.41, 2.12, 2.83, 3.54, 3.96, 4.24, 4.95, 6.0 A (version1.0b, it’s the latest and default version for future), corresponding RMS current settings: 1.0, 1.5, 2.0, 2.5, 2.8, 3.0, 3.5, 4.25A

  • 8 micro step resolution settings of 200 – 12800 via DIP switches

  • Anti resonance, high precision, extra low motor heating, low noise, smooth motor movement

  • Built-in short circuit, over-current and over-voltage protection

  • Compact size

  • 50% auto idle current reduction

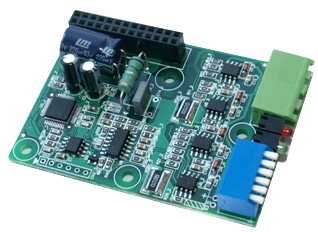

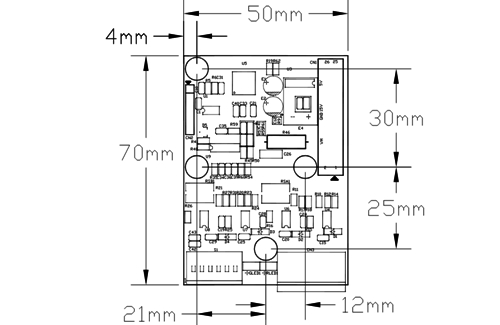

The SDM660 is designed for easy implementation for higher volume OEM clients to build customer version stepper drives, or integrate with their own control systems. It can also used to replace stepper drive modules in Leadshine 3 and 4 axis stepper drives.

After providing DC power, those Leadshine stepper drive modules can function as a high performance digital stepper drives to power 2 phase stepper motors of frame size NEMA 17, 23, and 24. Based on advance DSP control technology, Leadshine stepper drive modules are featured with high precision, extra low motor heating & noise, smooth motor, anti resonance, automatic idle current reduction.

Technical Data
Input Voltage204860VDC
Output Current1.41-6A
Pulse Input Frequency0-200kHz
Pulse Voltage055VDC
Logic Signal Current71016mA
Isolation resistance100--
